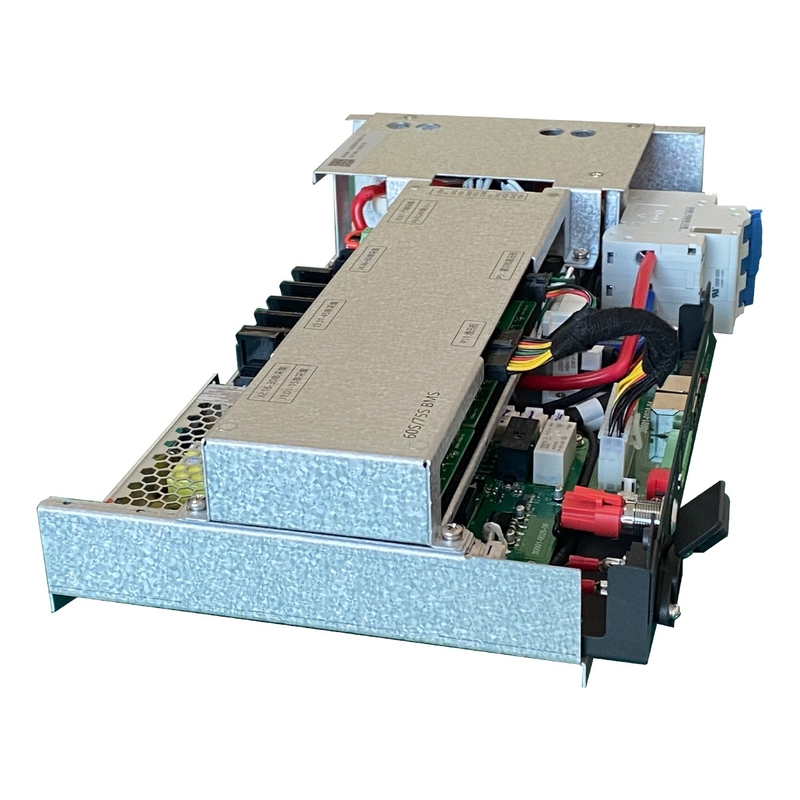

High Voltage 60S 192V 50A Lithium Battery BMS
High Voltage Battery Management System for LiFePO4/NMC/LTO Battery Energy Storage
Available Models
| Model No |
Rated Current |
Number of Strings |
Number of Rack |
| RBMS07D30S50A |
50A |
30S |
parallel |
| RBMS07D30S100A |
100A |
30S |
parallel |
| RBMS07S30S50A |
50A |
30S |
Single |
| RBMS07S30S100A |
100A |
30S |
Single |
| RBMS07D40S50A |
50A |
40S |
parallel |
| RBMS07D40S100A |
100A |
40S |
parallel |
| RBMS07S40S50A |
50A |
40S |
Single |
| RBMS07S40S100A |
100A |
40S |
Single |
| RBMS07S45S50A |
50A |
45S |
Single |
| RBMS07S45S100A |
100A |
45S |
Single |
| RBMS07S75S50A |
50A |
75S |
Single |
| RBMS07S75S100A |
100A |
75S |
Single |
| RBMS07D75S50A |
50A |
75S |
parallel |
| RBMS07D75S100A |
100A |
75S |
parallel |
Special design and requirement also available. Please contact us for more details!
Delivery List For One Set
| Part Name |
Specification |
Quantity |
| host |
According to the order model requirements |
1pc |
| Voltage acquisition wiring harness |
Standard 1.2m voltage collection line |
4pcs (60 strings); 5pcs (75 strings) |
| Temperature collection harness |
Standard 1.2m temperature collection line |
4pcs (60 strings); 5pcs (75 strings) |
| AC plug |
|
1pc |
| Terminals |
8 Pin green |
1pc |
Specification & Technical Data
| Item |
Descriptions |
| Product Name |
Integrated BMS (BMS for master and slave all in one) |
| Model No |
RBMS07S60S50A |
| Startup mode |
DC start (optional AC and DC starter) |
| System operating Voltage |
120 - 370 VDC |
| Number of strings |
60S(15S*4)
S for Single Rack
D for multiple racks in parallel connection |
| Balance |
Passive resistance equalization
Balanced current: 100mA ± 10mA(Single cell 3.4V) |
| Temperature Sampling |
Numbers: 12 Battery temperature(4*3) for 60S
Sampling accuracy: ± 2℃ |
| Voltage Sampling |
Sampling accuracy: single cell ±20mV |
| SOC% |
battery indicator: 25 for 0%-25%, 50 for 25%-50%, 75 for 50%-75%, 100 for 75%-100% |
| Communication mode |
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional |
| Display mode |
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional |
| Short circuit protection |
Support 7.5KA 20ms |
| Rated Current |
50A (100A is optional, according to the customers' need) |
| Maximum load of power components |
50A system transient: 70A/10S Steady-state: 100A transient state: 150A/10S |
| Alarm level |
1 Level |
| Protection level |
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down |
| Power Consumption |
≤10W |
| Withstand voltage rating |
1800VDC 1mA 1min |
| Safety certification |
Comply with CE certification standards |
| Operating Temperature |
Charging: -10～75℃
Discharging: -20 to 75℃
Storage: -40 to +75℃ |
| Operating humidity range |
<90 RH(40℃±2℃) |
Product Features
- High integrated design with minimal installation space requirements
- Long life cycle, >3000 times at 80% DOD
- Environmentally friendly with no heavy metals
- Maintenance free with no memory effect
- Internal BMS with full protection and high voltage protection for greater reliability
- Master and Slave all in one integrated solution
Applications
Company Information
We are factory, welcome to visit us!
Certifications
Packaging and Shipping
Frequently Asked Questions
1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our factory.
2. Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO
4. How about the delivery time?
The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.
5. What are your terms of payment?
For sample order or small orders usually will require full payment in advance. For big amount orders can be 30%-50% deposit and the rest payment should be finished before shipping. Advanced T/T is the main payment term, and other payment terms are negotiable.
6. What are your warranty terms?
We offer a 3-year warranty for RBMS, 1-year warranty for PCB.
7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.
8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
9. What Trade Terms are available?
No limitation for trade terms. EXW/FOB/CFR are all available. Moreover, we can send BMS via DHL&UPS&FEDEX quickly and easily. Other shipping ways can also be negotiable and available.
10. Is your BMS easy and convenient to install & test?
This is our the 4th generation high voltage BMS. It's an overall BMS solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
11. What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
