High Voltage BMS GCE Battery Management System 128S409.6V 50A HV BMS Master Slave BMS for LiFePO4 ESS UPS Substation Switchgear

Name: High Voltage BMS GCE Battery Management System 128S409.6V 50A HV BMS Master Slave BMS for LiFePO4 ESS UPS Substation Switchgear
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS-S23-50A-409.6V
Price: 100000000 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: GCE

Certificazione: CE/ROHS/MSDS

Numero di modello: RBMS-S23-50A-409.6V

Termini di trasporto & di pagamento

Quantità di ordine minimo: 2 impostati

Prezzo: negotiable with bruceliu@hngce.com

Imballaggi particolari: Cartone ondulato, pacchi, pallet, scatola di legno

Tempi di consegna: 15-25 giorni

Termini di pagamento: FOB/CIF/EXW/DDP

Capacità di alimentazione: 1000pcs / mese

Ottenga il migliore prezzo

chatta adesso

Dettagli del prodotto

Descrizione di prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    High Voltage BMS for LiFePO4, 128S409.6V Battery Management System, Master Slave BMS for ESS


Precisione di campionamento corrente:	1% FSR	Isolamento resistenza alla tensione:	2800VDC <1mA 1min
Livello di protezione:	IP20	Controllo della corrente in anello parallelo:	supporto
Gestione della carica e scarica delle batterie:	supporto	Regolazione di parametro di protezione di sistema:	supporto
Consumo energetico:	≤15 W	Garanzia:	3 anni
Tensione nominale:	128S409.6V	Corrente nominale:	50A
Materiale:	Metallo	Applicazione:	Soluzioni industriali, residenziali, UPS e di stoccaggio dell'energia solare.
Colore:	Nero	Comunicazione:	CAN, RS485, LAN
Metodo di installazione:	Adatto ad installazione a 19 pollici standard dello scaffale	Tipo di batteria:	LFP, NMC, LTO
Peso:	10KG	Equilibratura:	200 mA passivo o 3 A attivo

Precisione di campionamento corrente:	1% FSR
Isolamento resistenza alla tensione:	2800VDC <1mA 1min
Livello di protezione:	IP20
Controllo della corrente in anello parallelo:	supporto
Gestione della carica e scarica delle batterie:	supporto
Regolazione di parametro di protezione di sistema:	supporto
Consumo energetico:	≤15 W
Garanzia:	3 anni
Tensione nominale:	128S409.6V
Corrente nominale:	50A
Materiale:	Metallo
Applicazione:	Soluzioni industriali, residenziali, UPS e di stoccaggio dell'energia solare.
Colore:	Nero
Comunicazione:	CAN, RS485, LAN
Metodo di installazione:	Adatto ad installazione a 19 pollici standard dello scaffale
Tipo di batteria:	LFP, NMC, LTO
Peso:	10KG
Equilibratura:	200 mA passivo o 3 A attivo

High Voltage BMS GCE Battery Management System 128S409.6V 50A HV BMS Master Slave BMS for LiFePO4 ESS UPS Substation Switchgear

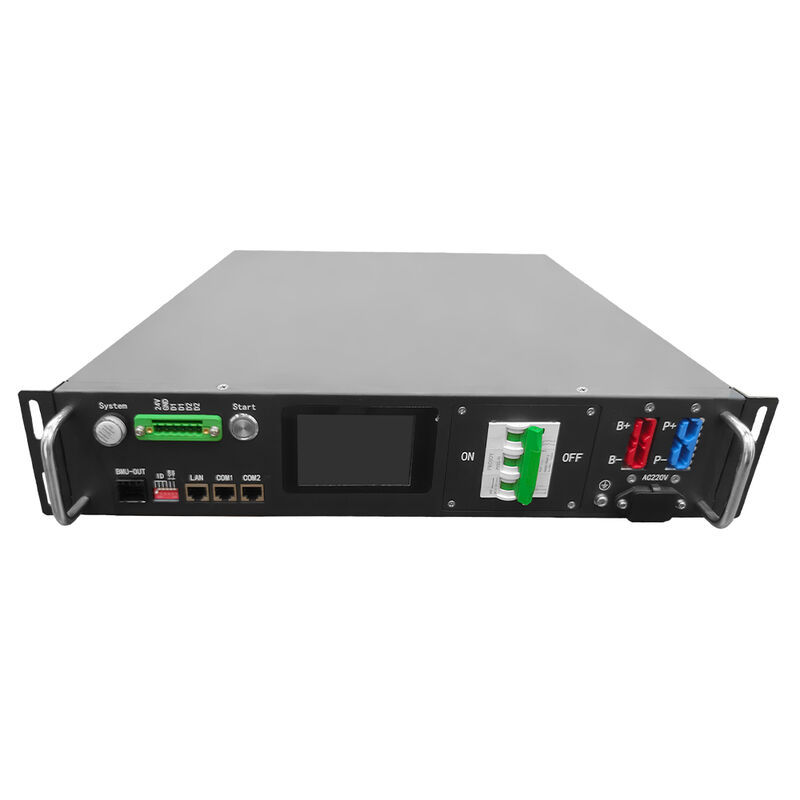

GCE 2U HV RBMS Master Battery Management System

High Voltage BMS GCE Battery Management System 128S409.6V 50A HV BMS Master Slave BMS for LiFePO4 ESS UPS Substation Switchgear

Product Overview

GCE 2U Rack-Mounted HV RBMS serves as the core master battery controller tailored for large-scale high-voltage lithium energy storage and UPS equipment. Built on a distributed, modular, three-tier BMU+RBMS+SBMS architecture, this rack BMS supports DC systems up to 500V with flexible deployment modes to match project capacity tiers from small household storage to megawatt-level containerized energy power stations.

Dual-layer standalone architecture (BMU + RBMS): Ideal for small-scale 10kWh-100kWh commercial & residential energy storage cabinets
Three-layer multi-cluster parallel architecture (BMU+RBMS+SBMS): Suitable for medium-to large projects of 50kWh-2MWh, supporting parallel connection of up to 15 RBMS units
Four-layer power station system: Scales seamlessly for large 2MWh-1000MWh PV power plant energy storage projects

Core Competitive Advantages

Distributed Modular Expandable Design, Wide Series Compatibility

Standardized 2U 19-inch rack structure with front-in/front-out wiring for easy cabinet installation, commissioning, and maintenance. Modular combination supports flexible expansion of energy storage capacity, compatible with LiFePO4, NMC, and LTO lithium cells, monitoring up to 160 cells in series.

All-Round Multi-Level Safety Protection & Accurate Sampling

Full battery protection logic including overcharge, over-discharge, over-temperature, over-current, and short-circuit defense (6KA short-circuit protection within 20ms). Current sampling precision reaches 1%FSR, with 2800VDC insulation withstand voltage to eliminate high-voltage leakage risks.

Rich Multi-Channel Communication & Cross-Brand Inverter Compatibility

Standard CAN, RS485, Ethernet LAN, and dry contact IO ports. Supports proprietary factory communication protocol and customizable protocol adaptation for mainstream inverter brands including Deye, Growatt, Goodwe, Sungrow, ATESS, Megarevo and Pylontech.

3.5-inch Embedded HMI & Massive Historical Data Storage

Built-in integrated 3.5-inch touch screen visualizes real-time voltage, current, temperature, and system fault alerts. Large-capacity onboard memory records up to 5000 system event logs with optional SD card slot for long-term data backup.

Wide Environmental Adaptability & Authorized Safety Certification

Operates stably under -20℃~60℃ working temperature and 5%-75%RH humidity. Passed CE certification compliant with IEC62477-1 EMC standards with IP20 protection grade for indoor rack cabinet installation.

Complete Technical Parameters

Basic Performance Item	Technical Index
Rated Continuous Current	50A
Supported HV System Voltage Grade	350V (120-350VDC) / 500V (260-500VDC)
Static Power Consumption	≤15W
Current Sampling Accuracy	±1%FSR
Insulation Withstand Voltage	2800VDC, leakage current ＜1mA within 1min
Overall Dimension	482(W)89(H)500(D) mm, standard 2U 19-inch rack
Net Weight	~10 kg
Protection Grade	IP20

Communication Interfaces	Function Description
CAN Port	Data communication with lower-layer BMU slave units
RS485 / CAN	Docking with UPS, inverters, and SBMS stack host
Ethernet LAN	Wired connection to PC monitoring software
Dual Dry Contact Outputs	Reserved for external alarm signal linkage

Standard Built-In Functions

Battery charge/discharge management, cell temperature monitoring, remote IAP firmware upgrade, editable protection parameter thresholds, short-circuit cut-off, pre-charge, parallel loop current balance, event log recording, DC cold start.

Optional Custom Functions

Factory pre-set single/parallel mode, 3.5-inch embedded touch HMI; insulation detection function optional upgrade.

Wide Application Scenarios

Large-scale PV power station grid-connected energy storage
Remote island off-grid power supply systems
Commercial & industrial peak-shaving energy storage cabinets
Household rooftop solar storage systems
Independent micro-grid power supply projects
Industrial UPS uninterruptible power supply
220VDC industrial power supply systems

Standard Package & Global Delivery

Each GCE 2U HV RBMS complete set includes: 1 × 2U Rack Master RBMS Host, matched GPS50AFP power terminals, 120Ω CAN terminating resistor, 6-pin dry contact terminal, 250V 10A AC wiring socket, full set of wiring harnesses and official user manual.

All products are packed in shockproof and moisture-proof cartons. Standard production lead time is 15-20 working days, depending on order quantity. We support global sea freight, air freight, and expedited express delivery.

Frequently Asked Questions

Q1: Are you an original manufacturer or a trading company?

A: We are a professional BMS manufacturer with over 10 years of R&D and production experience. Factory visits and production line inspections are warmly welcomed.

Q2: Can I get sample units for performance testing?

A: Yes, sample orders are supported for quality verification and market trial before bulk purchase.

Q3: What lithium cell chemistries are compatible with this HV RBMS?

A: Fully compatible with LiFePO4, NCM ternary and LTO lithium battery modules.

Q4: What's your warranty policy?

A: 3-year official warranty for RBMS master unit, 1-year warranty for BMU slave boards and PCB components.

Q5: Do you accept OEM & ODM customized development?

A: Custom service is available, including protocol modification, interface adjustment, and function customization to match unique project demands.

Q6: How does your factory control product quality?

A: Strict full-process QC inspection from raw material incoming testing, SMT assembly, to finished product aging test. Every unit undergoes full functional testing before packaging and shipment.

Q7: What voltage range can GCE HV BMS cover?

A: Our high-voltage BMS series supports system voltage from 96V up to 864V, with multiple current options: 50A, 125A, 160A, 250A, 400A, 500A for different energy storage capacity demands.
